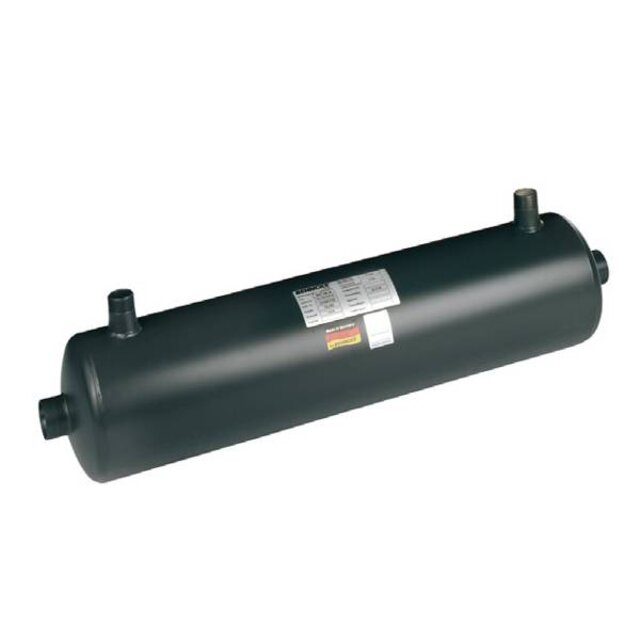

Stainless steel heat exchanger QWT100-40kw

Behncke stainless steel heat exchanger QWT100-40kw

This heat exchanger has been developed for swimming pools and is suitable for connection to the 90º/70ºC central heating system and for in-line installation at the filter outlet.

Equipped with an internal thread/hose connection for swimming pool circulation and an external thread for the central heating.

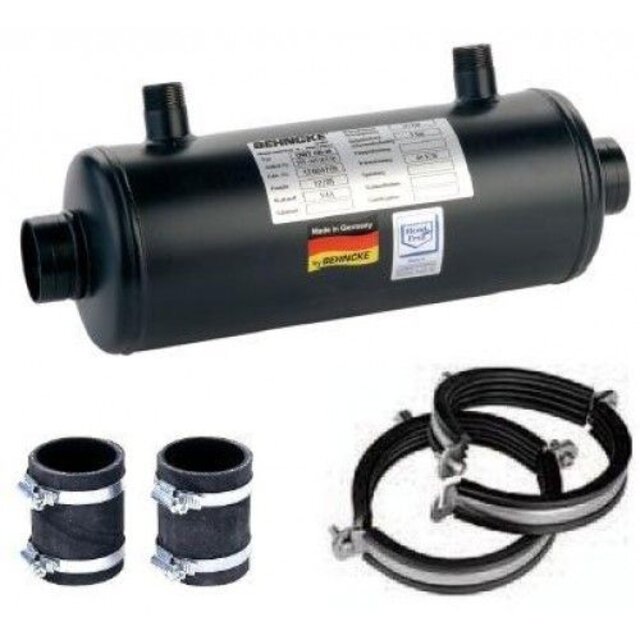

The heat exchanger is made of stainless steel AISI 316 Ti and is supplied complete with mounting brackets and a hose installation kit.

features:

• Working pressure primary 10 bar and secondary 3 bar
• connections of 1 1/2″ pool side and 1″ central heating
• 30kW-26,000 kcal/h, swimming pool/central heating-1.5"/.5" horizontal
•
