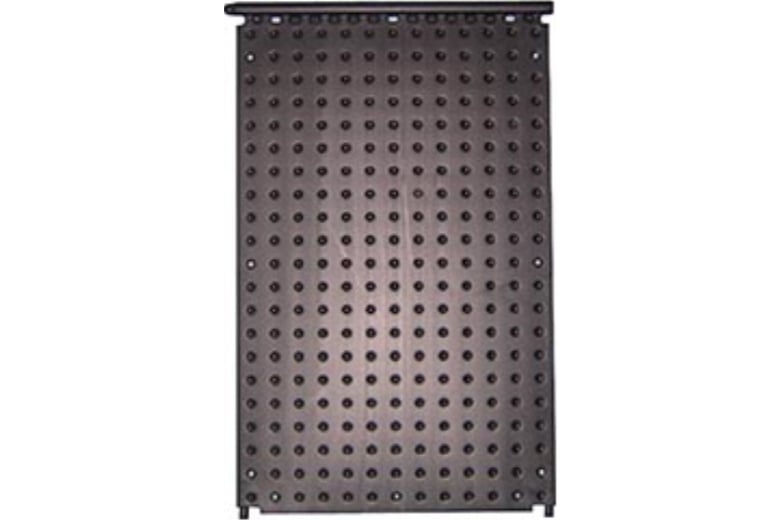

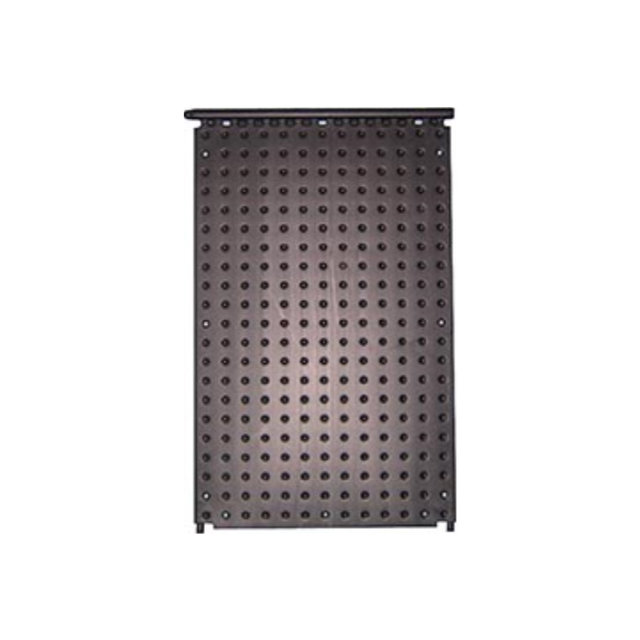

Solar panel 132cm X 82cm type 1000

Oku Solar panel 132cm X 82cm type 1000

Connections: 2 X 40mm and 2 X 25mm

The solar panels are made of high quality PE and are therefore suitable for permanent installation.

The problem is known. An outdoor pool that is not heated is only comfortably warm for 3-4 weeks a year in the summer.

Very short if you think about the work and investments that have been made for this. An indoor pool must be heated all year round, even in the summer.

Heating a swimming pool using conventional energy sources can be a costly affair and also a burden on the environment.

Heating a swimming pool is a perfect application of solar energy. High temperatures are not necessary, but a large amount of water must be heated.

• low pressure loss +/- 0.003 bar at 200 l/h/m²
• flow rate 150 - 250 l/h/m²
• made from 1 part
• weight +/- 6 kg/m² - water content 6 l/m²
• test pressure 4.5 bar at NT
• working pressure 1.2 bar - 40°
• efficiency +/- 80% - up to 0.8 kWh/m²
• an average of 0.5 to 0.6 kWh/m²
• generally to be used with existing filter pump
• no corrosion - resistant to swimming pool water
• pool water is pumped directly through panel
• suitable for permanent use
• temperature resistant from -50°C to 115°C
• full surface utilization - frost resistant - walkable
• 3 types available.

Dimensions:

type: 1000 1320mm 820mm

1001 1280mm 820mm

1002 120mm 820mm
