sand filter topmount 6 m³/h

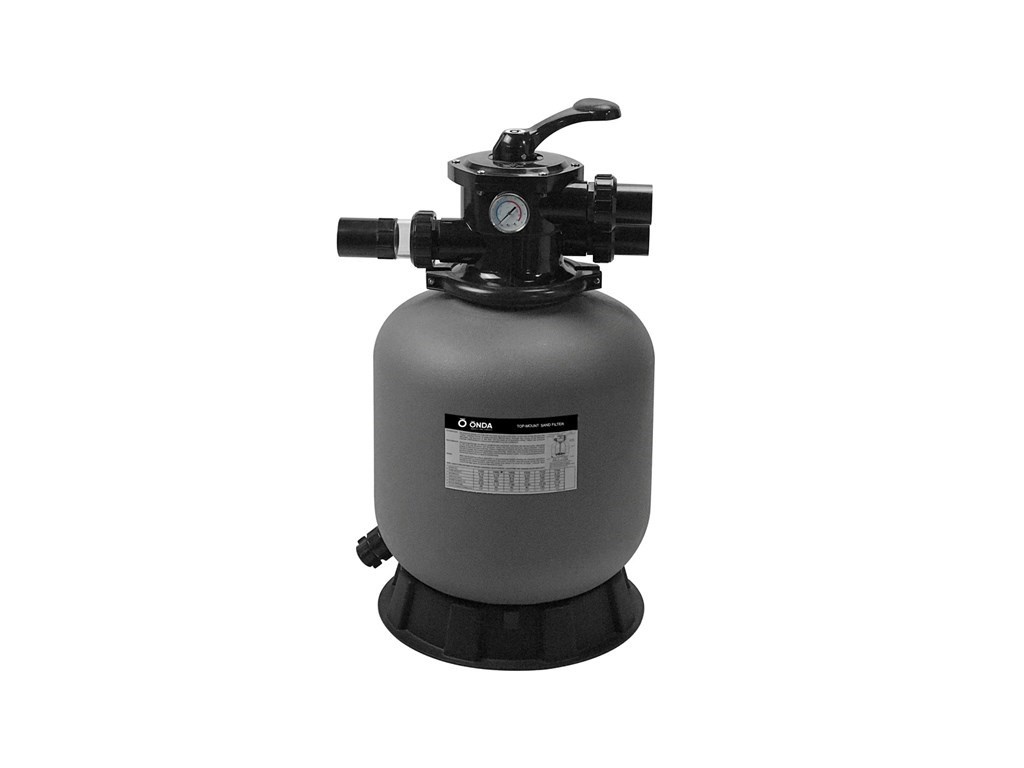

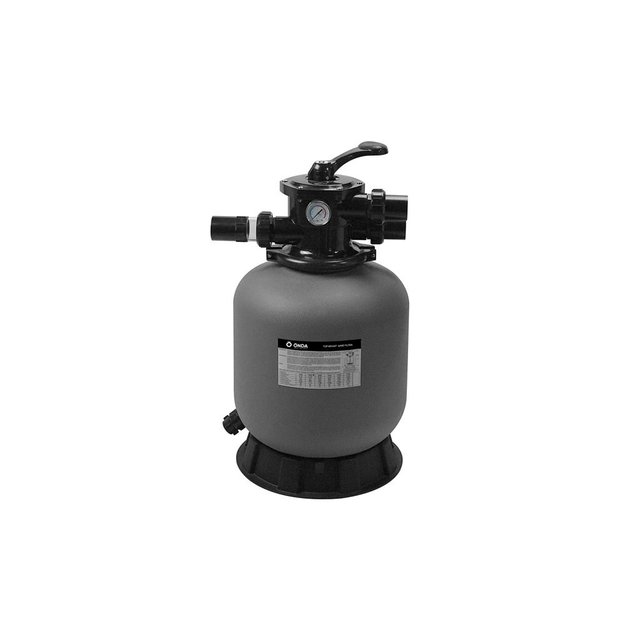

Onda sand filter topmount 6 m³/h

Blown PEHD filter
(High Density Polyethylene)

Properties:

• Compact and light
• 6-way valve for top mounting with practical closure and pressure gauge
• clamp closure that allows the valve to be rotated 360° to facilitate installation
• base plate filter
• filter with drain plug
• max. working pressure: 2.5 Bar
• Test pressure: 3.75 Bar
• max. temp.: 40°C
• max. filtration rate: 50m³/h/m²
• Grain size: 0.5 - 0.8 mm
• Filter: diam. 400mm
• Flow rate: 6.12 m³/h
• Connection: 1 1/2''
• Filling: 35 kg of sand
• Weight: 14.5 kg
