sand filter top mount 11 m³/h

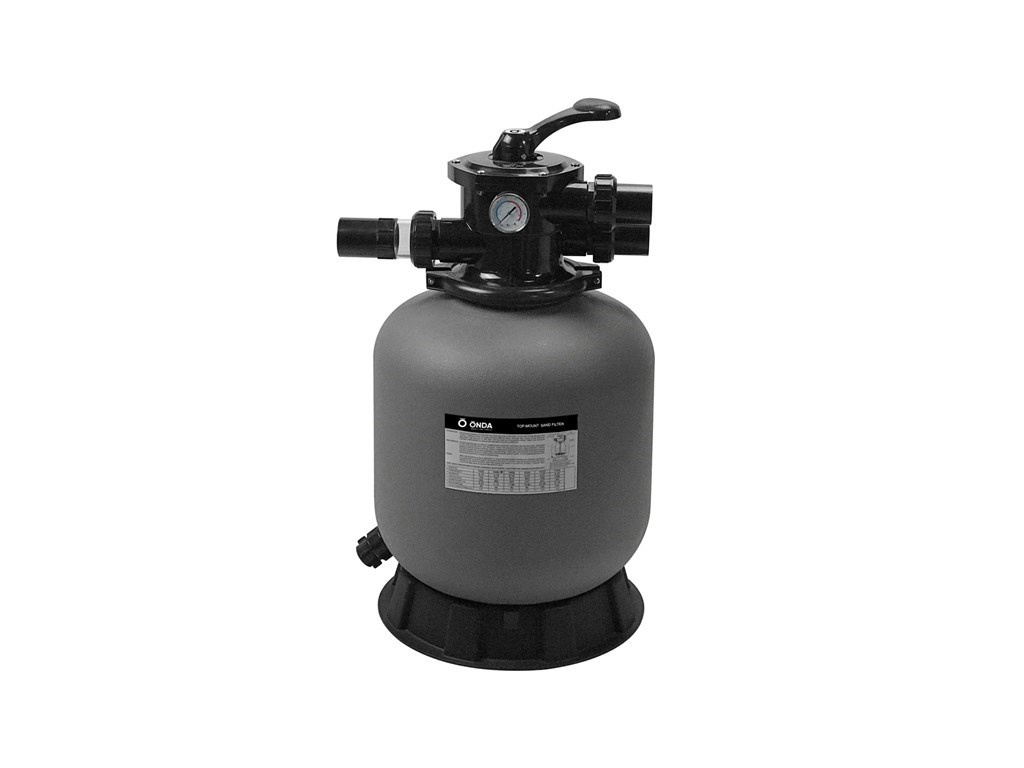

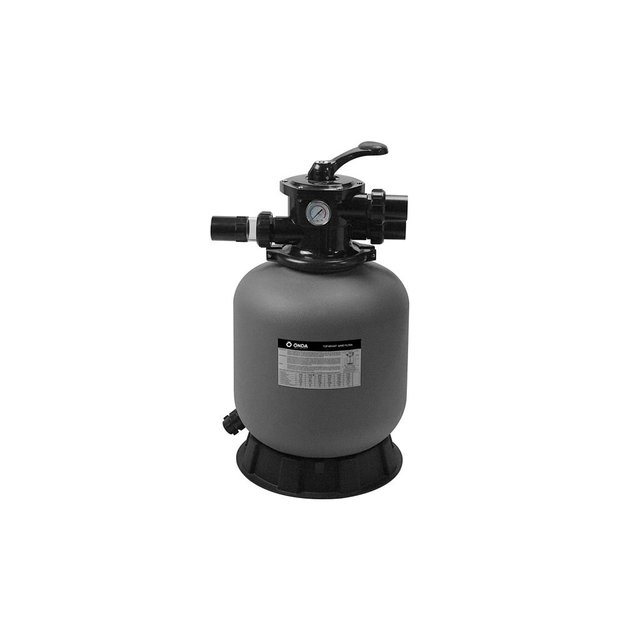

Onda sand filter top mount 11 m³/h

Blown PEHD filter
(High Density Polyethylene)

Features:

• Compact and light
• 6-way valve for top mounting with practical closure and pressure gauge
• clamp closure that allows the valve to be rotated 360° to facilitate installation
• footplate filter
• filter with drain plug
• Max. working pressure: 2.5 bar
• Test pressure: 3.75 Bar
• Max. temp.: 40°C
• Max. filtration rate: 50m³/h/m²
• Grain size: 0.5 - 0.8 mm
• Filter: diam. 527 mm
• Flow rate: 10.8m³/h
• Connection: 1 1/2''
• Filling: 85 kg sand
• Weight: 19 kg
