Badu Prime 90 new

Badu Prime 90 new

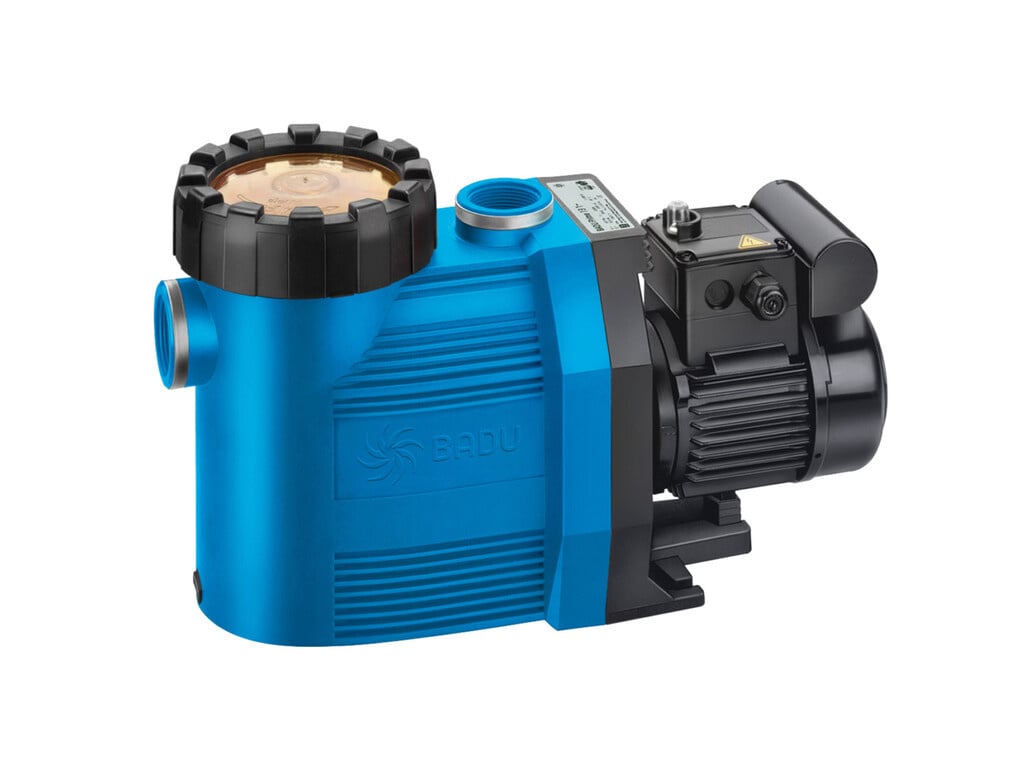

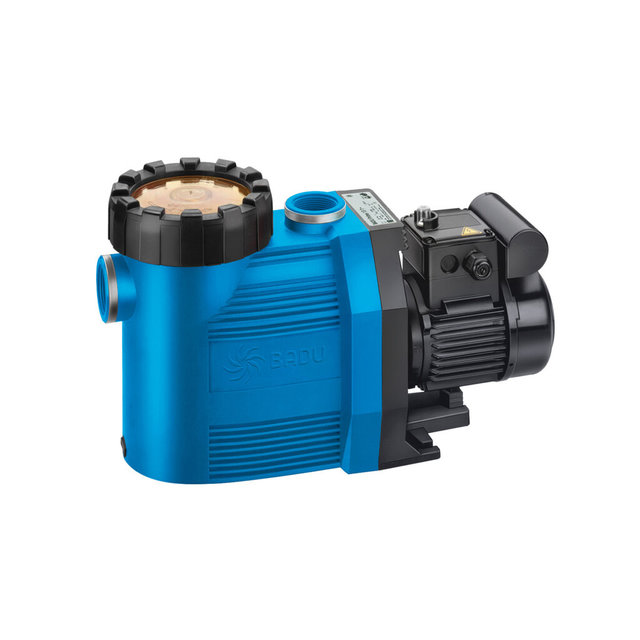

The Badu Prime is a single-stage, self-priming filter pump in block version with an integrated filter basket.

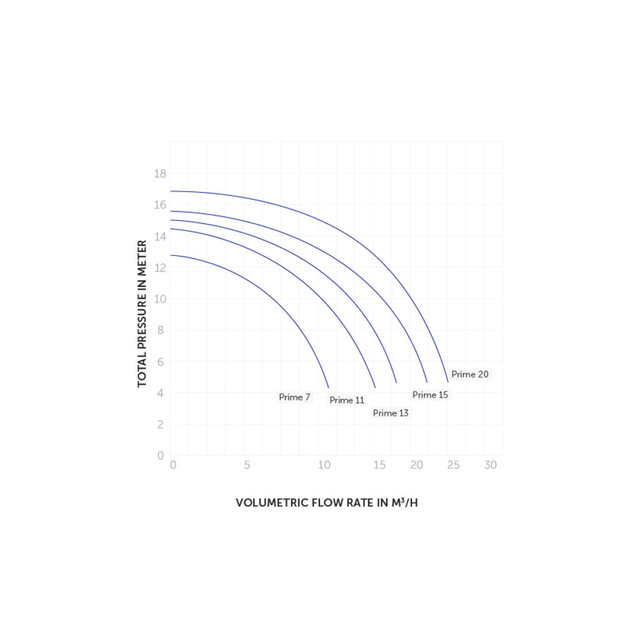

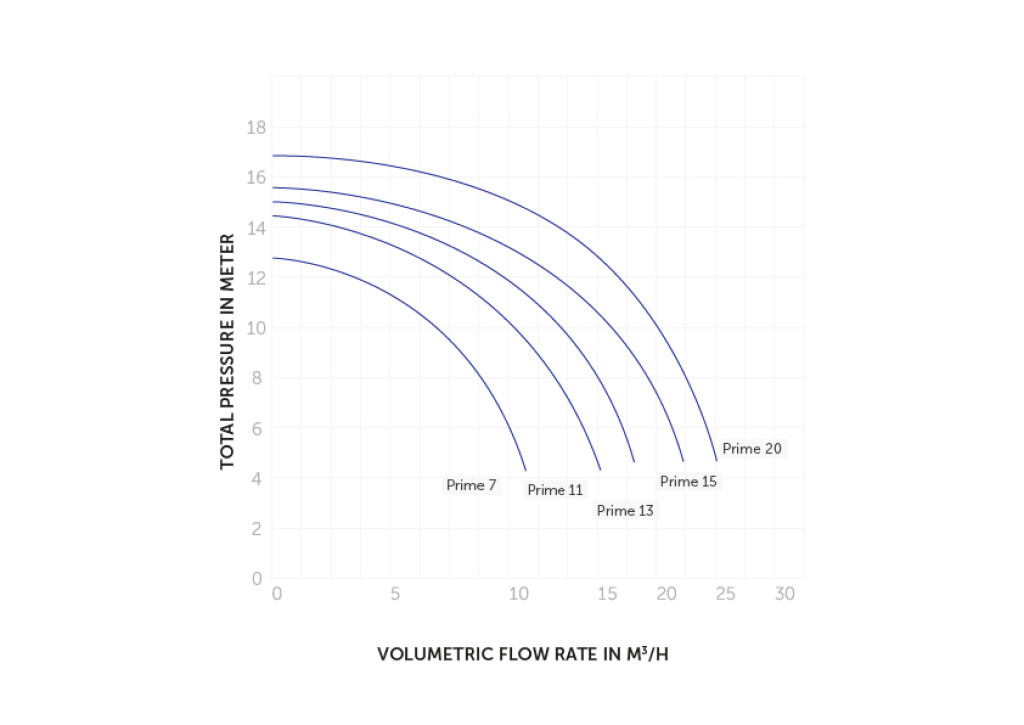

The maximum capacity of the pump is 25 m³/h, the maximum head is 17 metres.

The pump can be used for circulation of swimming pool water in filter installations.

It may be set up a maximum of 3 meters above or below the water level.

Galvanic isolation so that the motor shaft and pump shaft do not come into contact with the water.

The Badu 90 is equipped with motor protection with manual reset.

• Capacity: 7m³ - 30m³ at 8 m
• Power: 0.3kw to 1.5kw
• Robust, low-noise design.
• Medium temperature: max. 60°C.
• Connection: 240 & 400 Volt (power current).
• Materials: fiber reinforced plastic (PP).
• Shaft seal: carbon/ceramic mechanical seal + NBR.

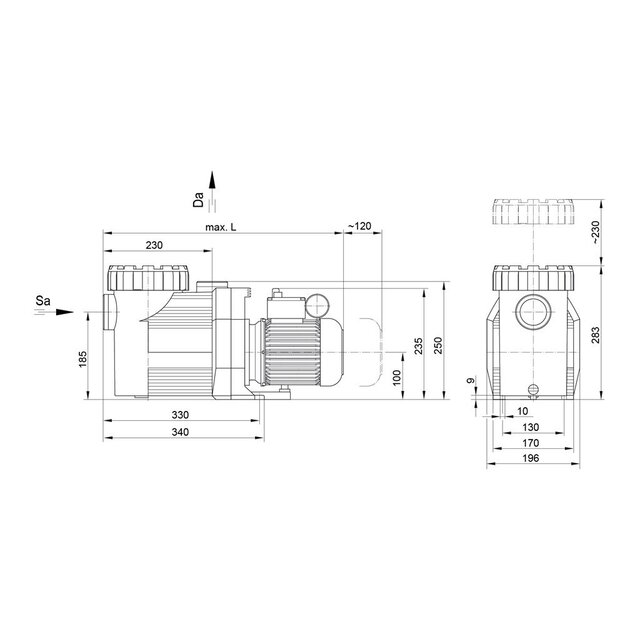

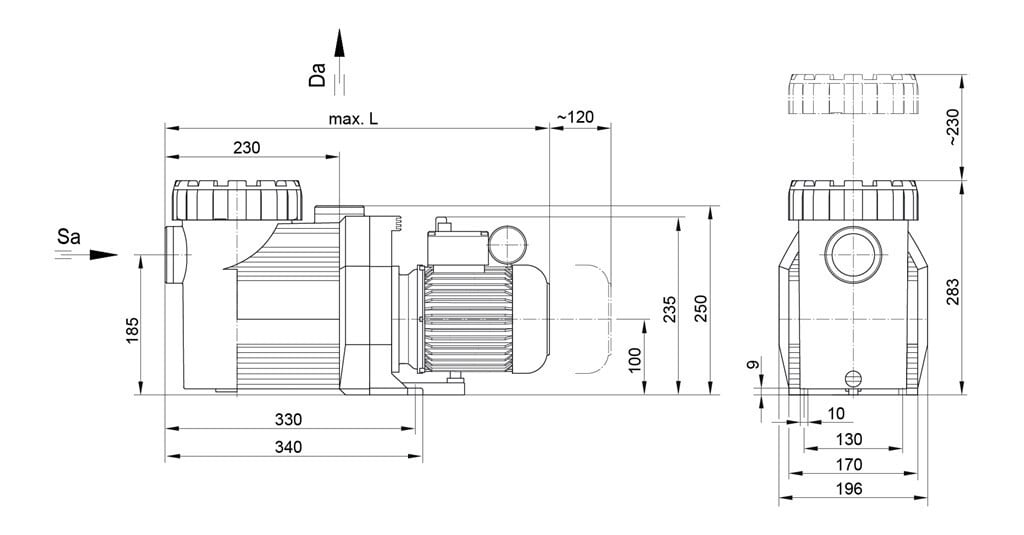

• suction/discharge connection: 50/63 mm (1 1/2"-2'').
• System pressure max. 2.5 bar.
• Protection class IP X4.
• Insulation class: F.
• Engine speed approx. 2840 (min-1).
• Pool pump weight: 14-17 kg.
• Suitable for baths with salt electrolysis systems, with normal use (4 to 5 grams of bath salt per liter of water).
